Bore Repair Systems BOA 408 bore welder mount for Climax BB5000 RDU mounts

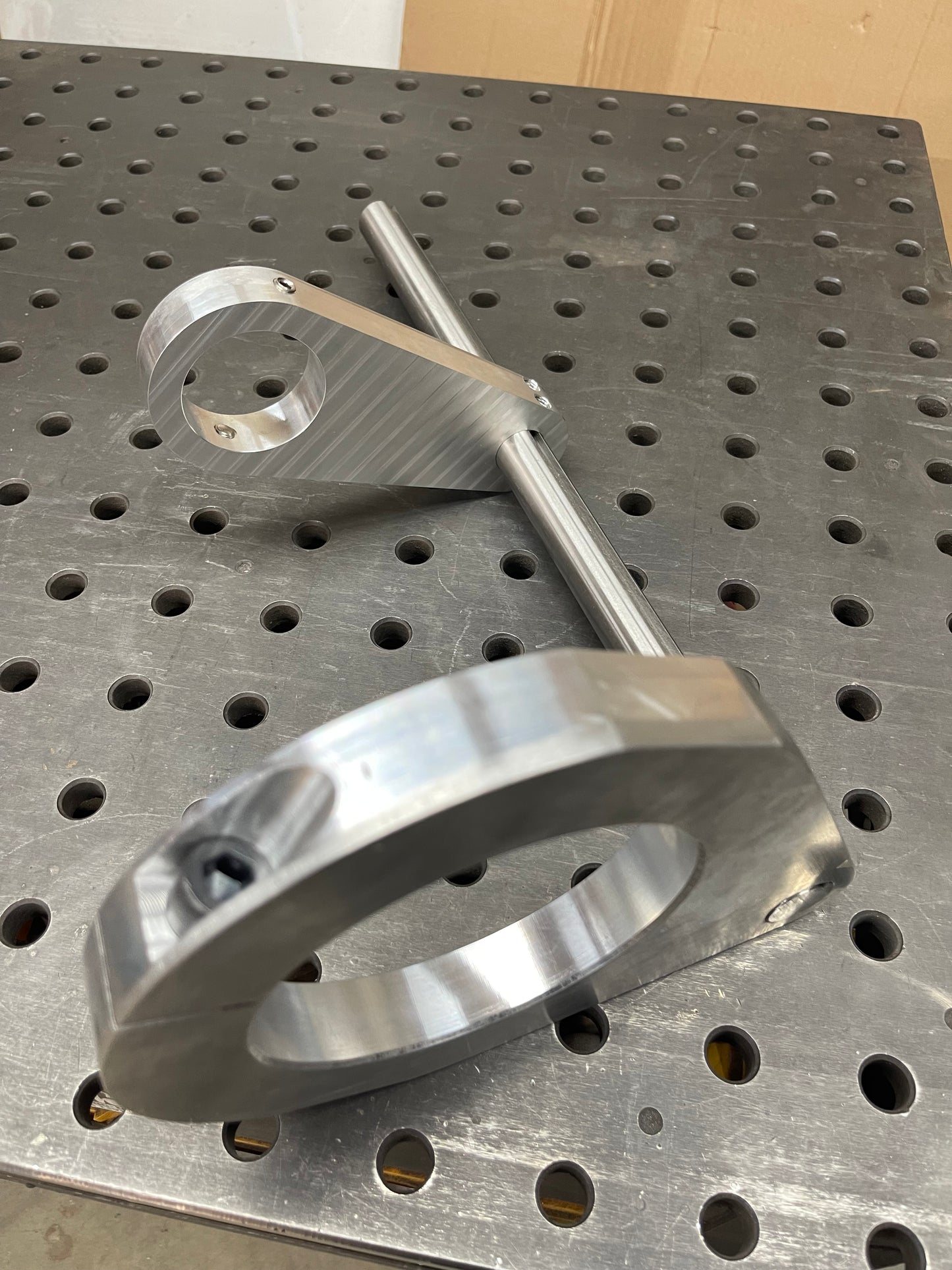

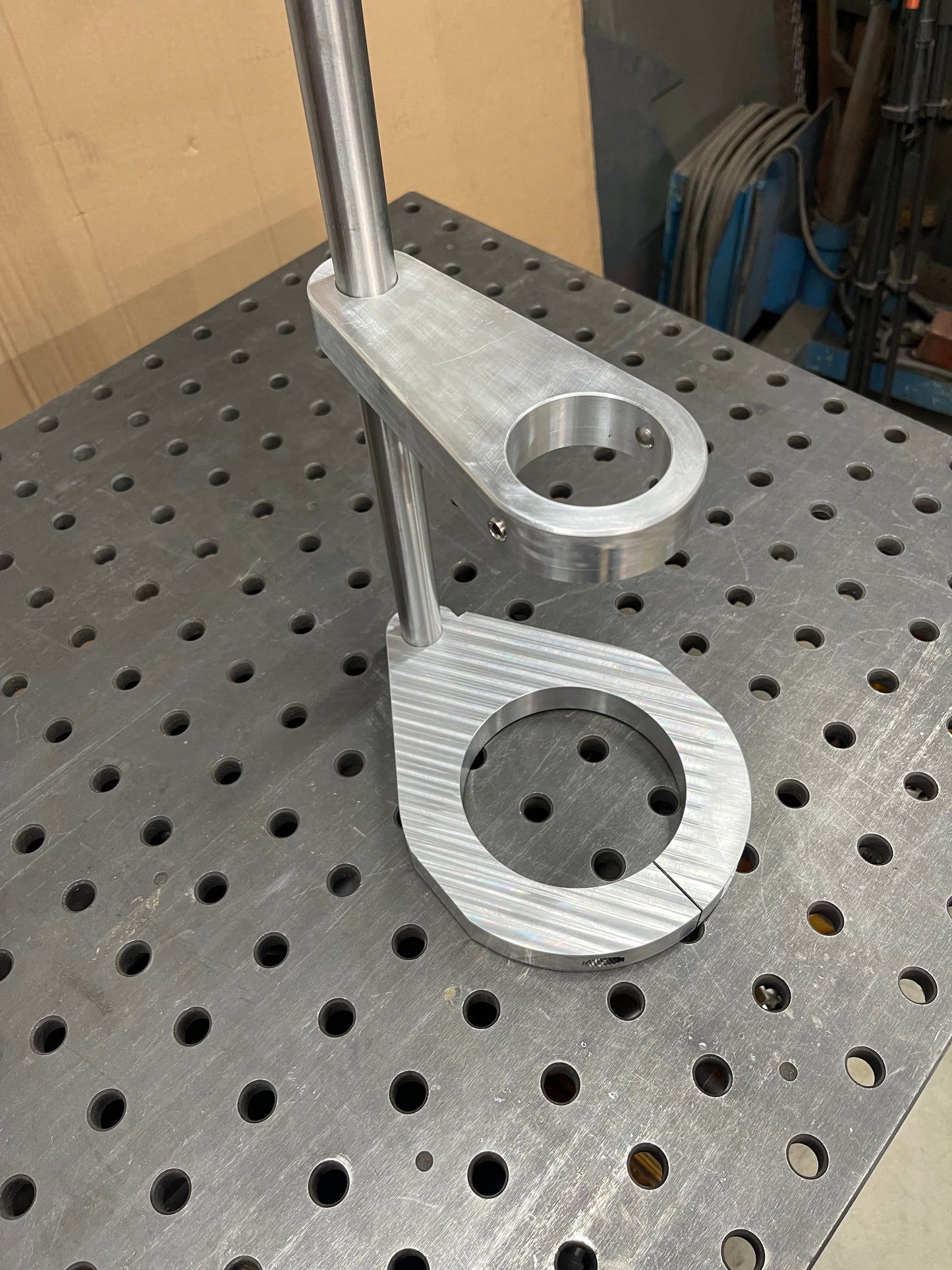

This product enables you to mount your BOA 408i bore welder to your Climax bearing housings designed for the BB5000. Use your existing 2.25" bar to align this product to the bore you need to weld, tighten up the 1/2"-13 allen head SHCS to close the mount and tighten it onto the bearing housing. I usually loosen the two set screws on the bore welder bracket and slide that off the boring bar for ease of use. Since this is designed with the keyed shaft, you can adjust the bore welder to bore very easily by loosening two 3/8"-16 set screws. This product uses domed headed set screws for mounting the bore welder.

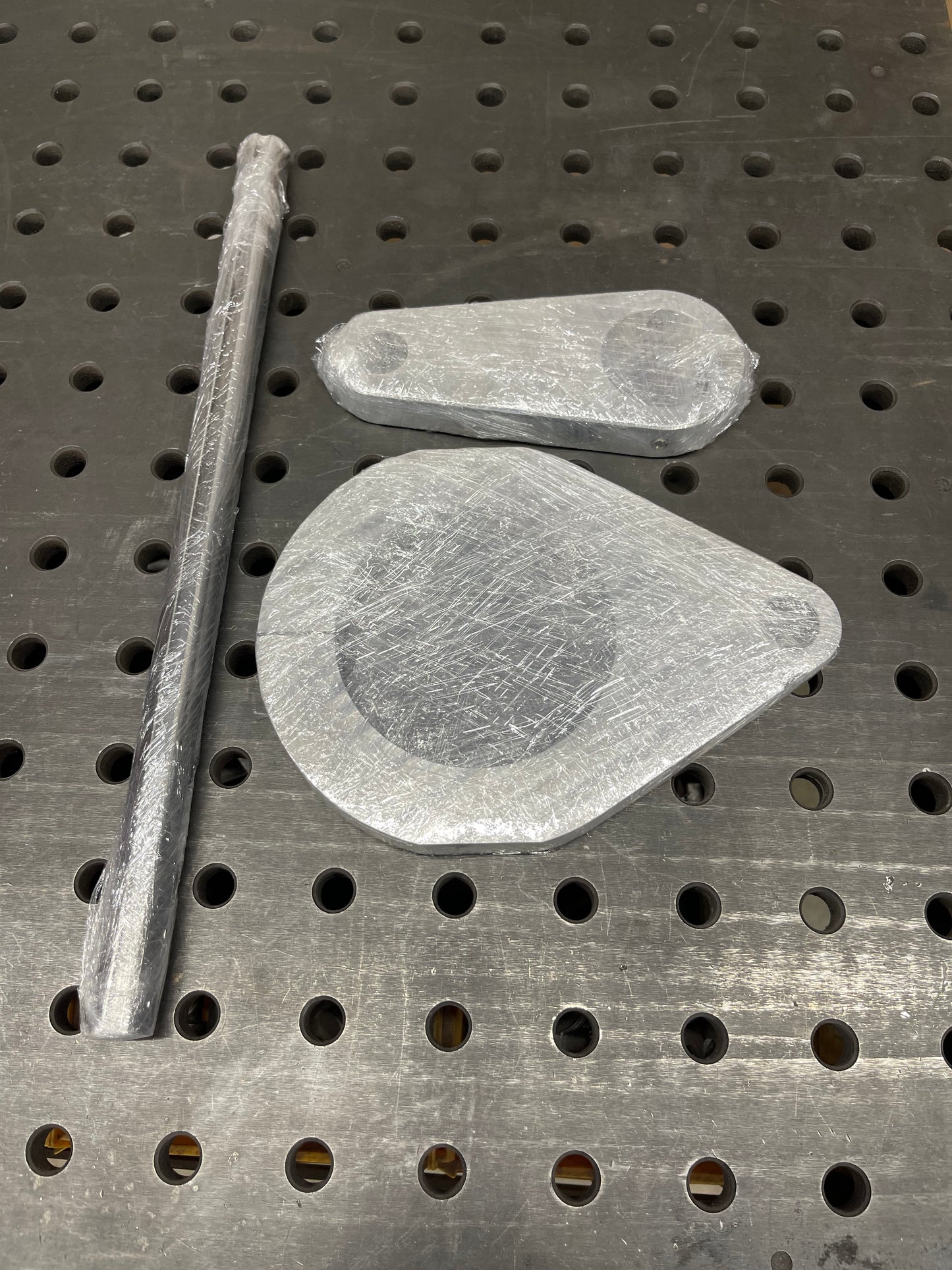

All set screws in this kit are supplied in stainless steel. The 1/2"-13 pinch bolt is an alloyed black oxide screw.  The keyed shaft comes standard at 18" and is 1045 steel. Oiling is recommended to reduce the chances of the keyed shaft rusting.
